Digimaster 3 Update on 2022.4

 Digimaster 3 Update 1.8.2203.30 on 2022.4



 The main points of Digimaster 3 Odometer Correction Master：

1. Latest Version: 1.8.2203.30 (Update on 2022.4)

2. Support Language: English

3. Update: Online Update

4. Original Yanhua Brand. with High Quality

5. No Tokens Limitation, and we will offer Extra 200 Tokens Coming for Newer and High-End Cars for you to Update Free

6. It contains a high performance hardware platform which takes high-speed CPLD and the ARM11 processor as the core technology

7. It works with various types of adapter you can easily achieve odometer correction, Audio decoding, airbag resetting, engine ECU resetting, IMMO, programming key for Benz &BMW etc

8. It contains the advanced technology of programming new keys for BMW and Benz, CAS-BDM reading/writing and resetting; 35080V6 erasure etc. large numbers of pictures and particular description makes your operation pleasant


Yanhua Digimaster3 error prompt Solution For Benz W211

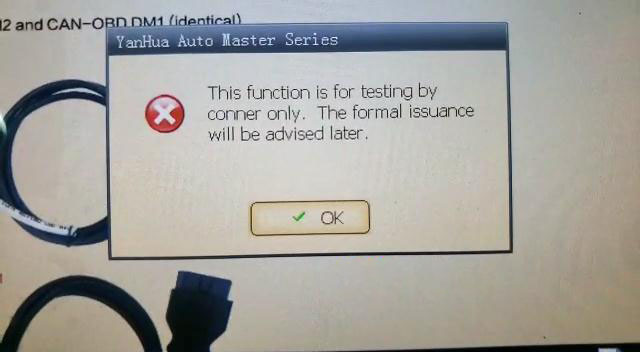

“This function is for testing by conner only, the formal issuance will be advised later.”In the process of using Digimaster3, correct odometer via OBD for Mercedes Benz W211 encountered such a prompt, what should I do?

Check out how I work and then get the error message above: Connect Digimaster3 to car using CAN-OBD DM1NW Audi OBDII cable.

Look at how I operate and then get the above error message:

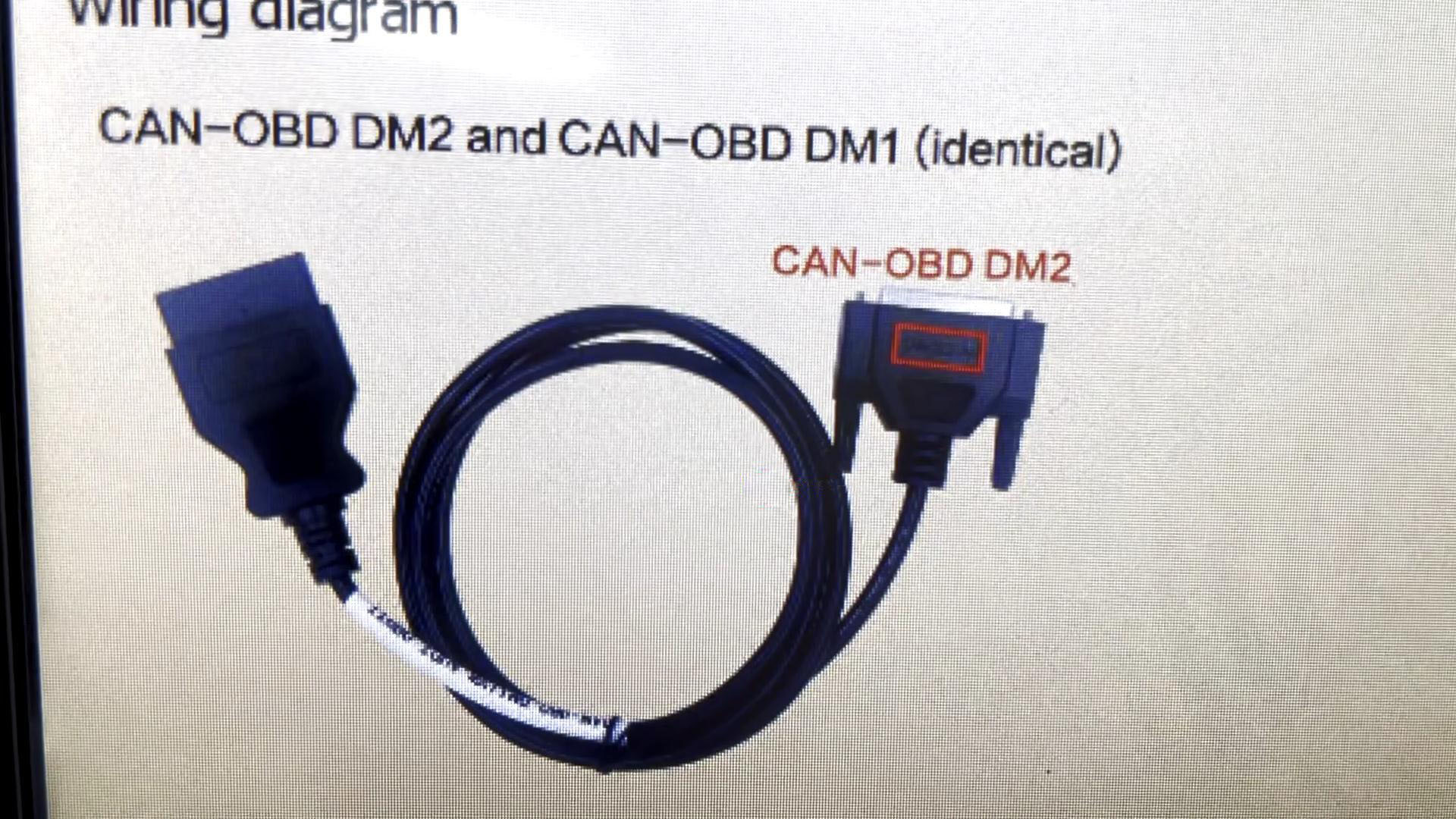

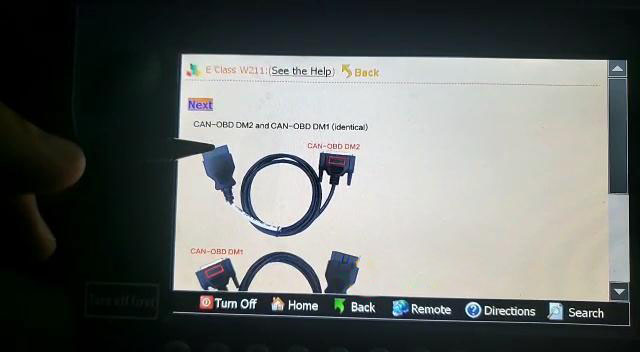

Connect Digimaster3 to the car using the CAN-OBD DM1NW Audi OBDII cable.

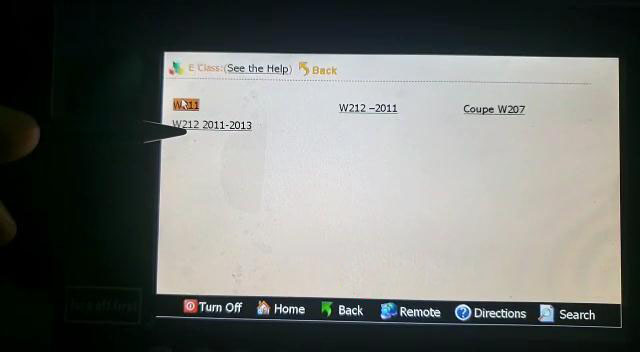

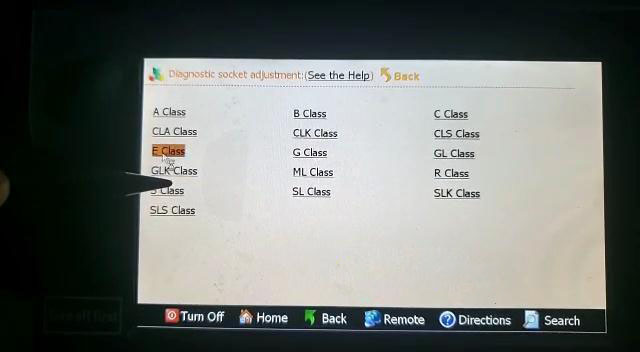

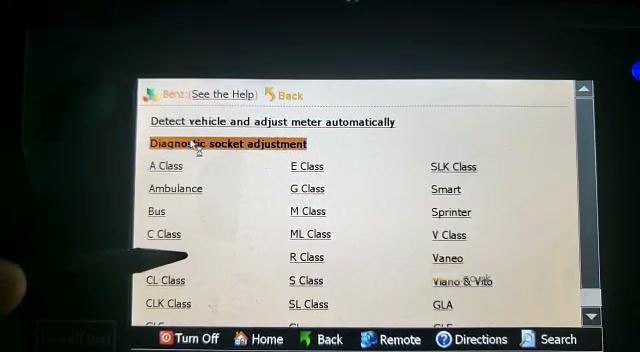

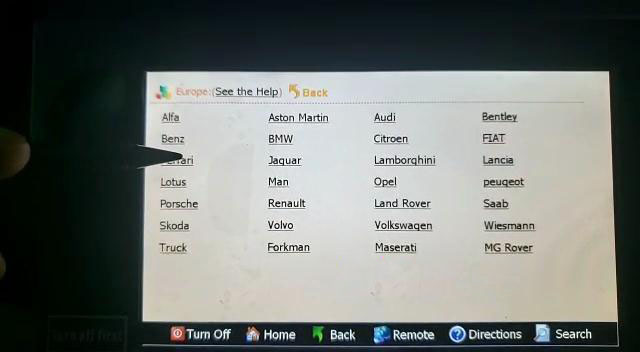

Tap “Meter System” -> Europe -> Benz -> Diagnostic socket adjustment -> E class -> W211 -> Next -> error ” “This function is for testing by conner only, the formal issuance will be advised later.”

Yanhua engineer replied: You can’t use Yanhua Digimaster3 Odometer Correction Tool to correct odometer for W211 via OBD, please dismantle EIS and dashboard first.

Watch How Yanhua Digimaster3 Correct Odometer for Mercedes Benz?
Some can be done via OBD, some need to remove to read memory, some requires to solder contacts.
ICP, OBP, 9-PIN or 38-PIN adapter are required on specific models.

Car Model	Method	Adapter	Storage Location
CLS Class W219 -2011	Diagnostic	CAN-OBD DM1	Cluster
E class W212 -2011 V1	Diagnostic	CAN-OBD DM1	Cluster
E class W212 -2011 V2	Diagnostic	CAN-OBD DM1	Cluster
GL Class X164 v1	Diagnostic	CAN-OBD DM1	Cluster
GL Class X164 v2	Diagnostic	CAN-OBD DM1	Cluster
ML Class W164 V1	Diagnostic	CAN-OBD DM1	Cluster
ML Class W164 V2	Diagnostic	CAN-OBD DM1	Cluster
R Class W251 V1	Diagnostic	CAN-OBD DM1	Cluster
R Class W251 V2	Diagnostic	CAN-OBD DM1	Cluster
E-Coupe W207	Diagnostic	CAN-OBD DM1	Cluster
CLS Class W218 2011-	Diagnostic	CAN-OBD DM1	Cluster
SLS Class R197	Diagnostic	CAN-OBD DM1	Cluster
SLK Class R171	Diagnostic	CAN-OBD DM1	Cluster
SL Class R230	Diagnostic	CAN-OBD DM1	Cluster
CLK Class W209	Diagnostic	CAN-OBD DM1	Cluster
E Class W211	Diagnostic	CAN-OBD DM1	Cluster
S Class W211 W216	Diagnostic	CAN-OBD DM1	Cluster
A Class V1- A160	Soldering Contacts	OBP	Cluster
A Class V2-2005 3L40K	Cluster: Memory Directly EIS: Memory Directly/ Soldering Contacts	OBP	Cluster
Ambulance  93C66	Memory Directly	OBP	Cluster
Bus Actross 24C02	Memory Directly	OBP	Cluster
Bus Actross 24C04	Memory Directly	OBP	Cluster
Bus Mann 24C04	Memory Directly	OBP	Cluster
C Class –1995.9 93CS56(14Pins)	Memory Directly	OBP	Cluster
C Class 1995.10-1996.6 C93C56(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
C Class 1996.7-1999 93C66(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 39Pins	Cluster
C Class 2000-2005 W203 -2001.7	Soldering Contacts	ICP	EIS
C Class 2000-2005 W203 2001.8-2002.7	Soldering Contacts	(W203/W220)	EIS
C Class 2000-2005 W203 2002-2004.7- MCU: hc08	Soldering Contacts	(W203/W220)	EIS
C Class 2000-2005 W203 2002-2004.7- MCU: hc12	Memory Directly/ Soldering Contacts	9S12/W211/ (E65/E66)/ CAN&BDM	EIS
C Class 2000-2005 W203 2004-2005 (80pins CPU)	Memory Directly/ Soldering Contacts	9S12/ CAN&BDM	EIS
C Class 2000-2005 W203	Memory Directly/ Meter Socket	OBP/ (C/E CLASS)	Cluster
C Class 2006 W203	Cluster: Memory Directly EIS: Memory Directly/ Soldering Contacts	Cluster: OBP EIS: 9S12/ CAN&BDM	Cluster+EIS
C Class 2006- W204	Memory Directly	Cluster: OBP EIS: 9S12	Cluster+EIS
CGW V1	Soldering Contacts	ICP	Cluster
CGW V2	Soldering Contacts	ICP	Cluster
CL Class 1995.9 93CS56(14Pins)	Memory Directly /Meter Socket	OBP/BENZ 95S	Cluster
CL Class 1995.10-1996.6 93C56(8Pins)	Memory Directly /Diagnostic	OBP/ BENZ 38Pins	Cluster
z CL Class  1996.7-1999 93C66(8Pins)	Memory Directly /Diagnostic	OBP/ BENZ 38Pins	Cluster
CL Class 2000 24C04	Memory Directly	OBP	Cluster
CL Class 2001- W215 -2001.7	Soldering Contacts	ICP	EIS
CL Class 2001- W215 2001.8-2002.7	Soldering Contacts	(W203/W220)	EIS
CL Class 2001- W215 2002-2004	Soldering Contacts	(W203/W220)	EIS
CL Class 2001- W215 2004-2005 (80pins CPU)	Memory Directly/ Soldering Contacts	9S12/ CAN&BDM	EIS
CL Class 2001- W215 Meter adjustment	Memory Directly	OBP	Cluster
CLK Class–1998.4 93C56(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
CLK Class–1998.4 93C66(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
CLK Class 1999.7-2000 93C86	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
CLK Class 2001- W209 2002 EIS MC908 V1	Soldering Contacts	ICP	EIS
CLK Class 2001- W209 2002 EIS MC908 V2	Soldering Contacts	ICP	EIS
CLK Class 2001- W209 2002 EIS MC908 V3	Soldering Contacts	ICP	EIS
CLK Class 2001- W209 2002-2004 EIS(MC912)	Memory Directly/ Soldering Contacts	9S12/W211/ (E65/E66)/ CAN&BDM	EIS
CLK Class 2001- W209 2004-2005 EIS(MC9S12)	Memory Directly/ Soldering Contacts	9S12/ CAN&BDM	EIS
CLK Class 2001- W209 Meter adjustment	Memory Directly	OBP	Cluster
CLK Class 2006 W219 2002 EIS MC908 V1	Soldering Contacts	ICP	EIS
CLK Class 2006 W219 2002 EIS MC908 V2	Soldering Contacts	ICP	EIS
CLK Class  2006 W219 2002 EIS MC908 V3	Soldering Contacts	ICP	EIS
CLK Class 2006 W219 2002-2004 EIS(MC912)	Memory Directly/ Soldering Contacts	9S12/W211/ (E65/E66)/ CAN&BDM	EIS
CLK Class  2006 W219 2004-2005 EIS(MC9S12	Memory Directly/ Soldering Contacts	9S12/ CAN&BDM	EIS
CLK Class  2006 W219 Meter adjustment	Memory Directly	OBP	Cluster
E Class -1998.4 93C56(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
E Class -1998.4 93C66(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
E Class 1999.7-2000 93C86	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
E Class 2001- W211 2002-2004 EIS (112pins CPU)	Memory Directly/ Soldering Contacts	9S12/W211/ (E65/E66)/ CAN&BDM	EIS
E Class 2001- W211 2004-2005 EIS (80pins CPU)	Memory Directly/ Soldering Contacts	9S12/ CAN&BDM	EIS
E Class 2001- W211 24C16	Memory Directly	OBP	Cluster
E Class 2001- W211 24C32	Memory Directly	OBP	Cluster
E Class 2001- W211 Meter socket	Meter Socket	C/E CLASS	Cluster
E Class 2009- W212	Memory Directly	OBP	Cluster
G Class -1998.4 93C66(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
G Class 1998.5-1999 93C86	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
G Class 2000- MCU(new) 2002 EIS MC908 V1	Soldering Contacts	ICP	EIS
G Class 2000- MCU(new) 2002 EIS MC908 V2	Soldering Contacts	ICP	EIS
G Class 2000- MCU(new) 2002 EIS MC908 V3	Soldering Contacts	ICP	EIS
G Class 2000- MCU(new) 2002-2004 EIS(MC912)	Memory Directly/ Soldering Contacts	9S12/W211/ (E65/E66)/ CAN&BDM	EIS
G Class 2000- MCU(new) 2004-2005 EIS(MC9S12)	Memory Directly/ Soldering Contacts	9S12/ CAN&BDM	EIS
G Class  2000- MCU(new) Meter adjustment	Memory Directly	OBP	Cluster
M Class 2006 W164	Memory Directly	OBP	Cluster
ML Class 2000 93C66	Memory Directly/ Soldering Contacts	OBP/BENZ-OBD	Cluster
ML Class 2005 ML350	Cluster: Memory Directly EIS: Memory Directly/ Soldering Contacts	Cluster: OBP EIS: 9S12/ CAN&BDM	Cluster+EIS
R Class 2006 R350	Cluster: Memory Directly EIS: Memory Directly/ Soldering Contacts	Cluster: OBP EIS: 9S12/ CAN&BDM	Cluster+EIS
S Class -1995.9 93CS56(14Pins)	Memory Directly / Meter Socket	OBP/BENZ 95S	Cluster
S Class 1995.10-1996.6 93C56(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
S Class 1996.7-1998 93C66(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
S Class 1999 B58	Memory Directly	OBP	Cluster
S Class 2000 24C04	Memory Directly	OBP	Cluster
S Class 2001- W220 -2001.7	Soldering Contacts	ICP	EIS
S Class 2001- W220 2001.8-2002.7	Soldering Contacts	(W203/W220)	EIS
S Class 2001- W220 2002-2004	Soldering Contacts	(W203/W220)	EIS
S Class 2001- W220 2004-2005 (80pins CPU	Memory Directly/ Soldering Contacts	9S12/ CAN&BDM	EIS
S Class 2001- W220 Meter adjustment	Memory Directly	OBP	Cluster
S Class 2006 W221	Memory Directly	OBP	Cluster
SL Class 1995.9 93CS56(14Pins)	Memory Directly/ Meter Socket	OBP/BENZ 95S	Cluster
SL Class 1995.10-1996.6 93C56(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
SL Class 1996.7-1998 93C66(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
SL Class 2000- R230 -2001.7	Soldering Contacts	ICP	EIS
SL Class 2000- R230 2001.8-2002.7	Soldering Contacts	(W203/W220)	EIS
SL Class 2000- R230 2002-2004	Soldering Contacts	(W203/W220)	EIS
SL Class  2000- R230 2005	Memory Directly/ Soldering Contacts	9S12/ CAN&BDM	EIS
SL Class 2000- R230 Meter adjustment	Memory Directly	OBP	Cluster
SLK Class -1998.4 R170	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
SL Class 1998.5-1999 R170	Memory Directly/ Diagnostic	OBP/BENZ-OBD	Cluster
SLK Class 2000- R171 2004-2005 EIS (80pins CPU)	Memory Directly/ Soldering Contacts	EIS: 9S12/ CAN&BDM	EIS
SLK Class 2000- R171 Meter Adjustment	Memory Directly	OBP	Cluster
Smart -2004	Cluster: Memory Directly BCU: Soldering Contacts	Cluster: OBP BCU: ICP	Cluster+BCU
Smart 2004-	Cluster: Memory Directly BCU: Soldering Contacts	Cluster: OBP BCU: ICP	Cluster+BCU
Sprinter 2000 Fahrt	Memory Directly	OBP	Cluster
Sprinter 2000 Tacho	Memory Directly	OBP	Cluster
Sprinter 24C02	Memory Directly	OBP	Cluster
Sprinter 93C46 V1	Memory Directly	OBP	Cluster
Sprinter 93C46 V2	Memory Directly	OBP	Cluster
Sprinter 93C46 V3	Memory Directly	OBP	Cluster
Sprinter Magneti-Marelli V1	Soldering Contacts	ICP	Cluster
Sprinter Magneti-Marelli V2	Soldering Contacts	ICP	Cluster
V Class 2005 V2	Memory Directly EIS: Soldering Contacts	Cluster: OBP EIS: ICP	Cluster+EIS
V Class Magneti-Marelli V1	Soldering Contacts	ICP	Cluster
V Class  Magneti-Marelli V2	Soldering Contacts	ICP	Cluster
Vaneo	Soldering Contacts	ICP	Cluster
Viano vito	Cluster: Memory Directly EIS: Soldering Contacts	Cluster: OBP EIS: ICP	Cluster+EIS

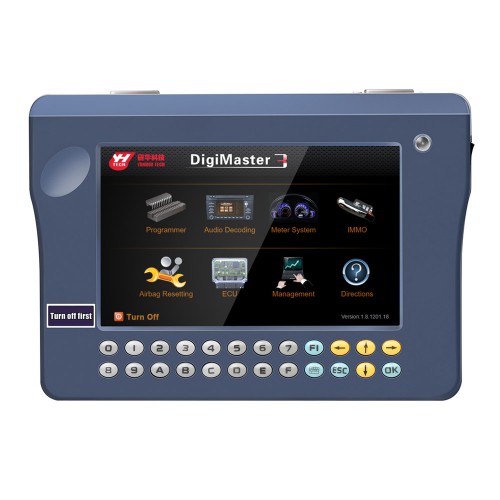

What is Yanhua Digimaster 3

What is Yanhua Digimaster 3?

Digimaster 3 is the third generation multi-functional Automobile data adjusting equipment developed by Nanning Yanhua Electronics Co.,Ltd. It bases on a high performance hardware platform which takes high-speed CPLD and the ARM11 processor as the core device.

Seven inch LCD touch-screen with high resolution makes its interface easy-used. Working with various types of adapter you can easily achieve odometer correction Audio decoding¡¢airbag resetting engine ECU resetting IMMO, programming key for Benz and BMW etc. It is applicative for all types of data processing such as OBD connection, dashboard soldering, CAS-BDM.

It contains the advanced technology of programming new keys for BMW and Mercedes-Benz , CAS-BDM reading/writing and resetting, 35080V6 erasure etc. The operation interface is highly user friendly, large numbers of pictures and particular description makes your operation pleasant. Online updating and module authorization keeps you always on the leading edge of technology.

What is function of Digimaster III:

1. Odometer correction
2. Audio decoding
3. Airbage reset
4. ECU programming
5. Key Programming for BMW & Mercedes-Benz

Odometer correction vehicle:

European, American, Japanese and Korea.

Alfa Audi Aston BMW Benz Bentley Cadillac Chrysler Citroen Daihatsu

Ford FIAT Ferrari Forkman GM Honda Hyundai ISUZU Jaguar KIA

Lincoln Lexus Lamborghini Lancia Lotus Martin Mazda Mitsubishi Man Maserati

Nissan Opel Proton Peugeot Porsche Renault Rover

SSangYong Subaru SUZUKI Saab Skoda Toyota Truck

Volvo Volkswagen Wiesmann

Othe vehicle Motorcycle Truck

Special Functions:

1. Support OBD-II interface odometer adjustment of Volkswagen, Audi, Benz, BMW and BMW 7 Series models: E65 CAS and the 2009 Audi A6L and Q7.
2. Read BMW CAS1/ 2/ 3 data by CAN interface.
3. Online reading BMW CAS1/ 2/ 3/ 3+/ 4, Mercedes-Benz EIS EEPROM and FLASH data by BDM.
4. Support the Mercedes-Benz S, C, E, odometer and EIS adjustment; Porsche, Ferrari, Bentley and other European luxury cars odometer adjustment; Chinese domestic car MCU and engineering machinery odometer adjustment.
5. Support the MOTOROLA/FREESCALE series CPU (including some CPU flash) data read and write.
6. Support key programming for Mercedes Benz and BMW series cars.
Digimaster 3 Features:

1. Newly added key programming function
It is applicable for high-class cars such as Mercedes Benz and BMW. Innovative automatic mode for key programming technology, multi-language operation, the key programming complete in one go, effectively ensure the security of reading and writing data.

2. DigiMaster-III New Generation Core Framework
Applying the new G3 platform of Yanhua Tech and the innovative consumption mode of “Pay as you go”support the latest car, global synchronic upgrade, extend and integrate functions freely.

3. DigiMaster-III Intelligent Operation Platform

4. Upgrade the single-task system into intelligent multi-task and multi-thread operation system, extend functions freely and unlimitedly.

5. Odometer Correction Tool DigiMaster-III Comprehensive Upgraded Operation Interface
It breaks away from the original monotonous static interface, based on IE core technology to support rich and dynamic effects as well as advanced skin interface. And it is more beautiful and friendly, supports for many language around the world.

6. DigiMaster-III High Definition Digital Screen
Upgrade the low definition LCD color screen (320X240) to the imported HD digital TFT color screen (800X480) which applying the precision touch technology

Digimaster 3 update prompts “Connect error 11001 (0x2AF9) Solution

Digimaster 3 Digimaster III Original Odometer Correction Master:
1 Works with various types of adapter you can easily achieve odometer correction by remove dashboard
2 Besides mileage function,it also can do Audio decoding, airbag resetting, engine ECU resetting, IMMO, programming key for Benz &BMW etc.
3 One-click online free upgrading, unlimited use without tokens.
4 New package,save more ship cost.

In the process of upgrading the Yanhua Digimaster 3 software, I get such an error message:“Connect error: 11001 (0*2AF9) ” and “DHCP was unable to oaten an IP address”. what should I do?

Yanhua chief engineer replied:

Please do like this: tap “Management”, then “Remote Assistance” , then “Set IP”, finally tap “Automatically obtain IP”. If the IP cannot be obtained automatically, it is also possible to manually enter the correct IP address.

Look at this image below: This is already the latest version, do not need to upgrade.

Hope it helps!

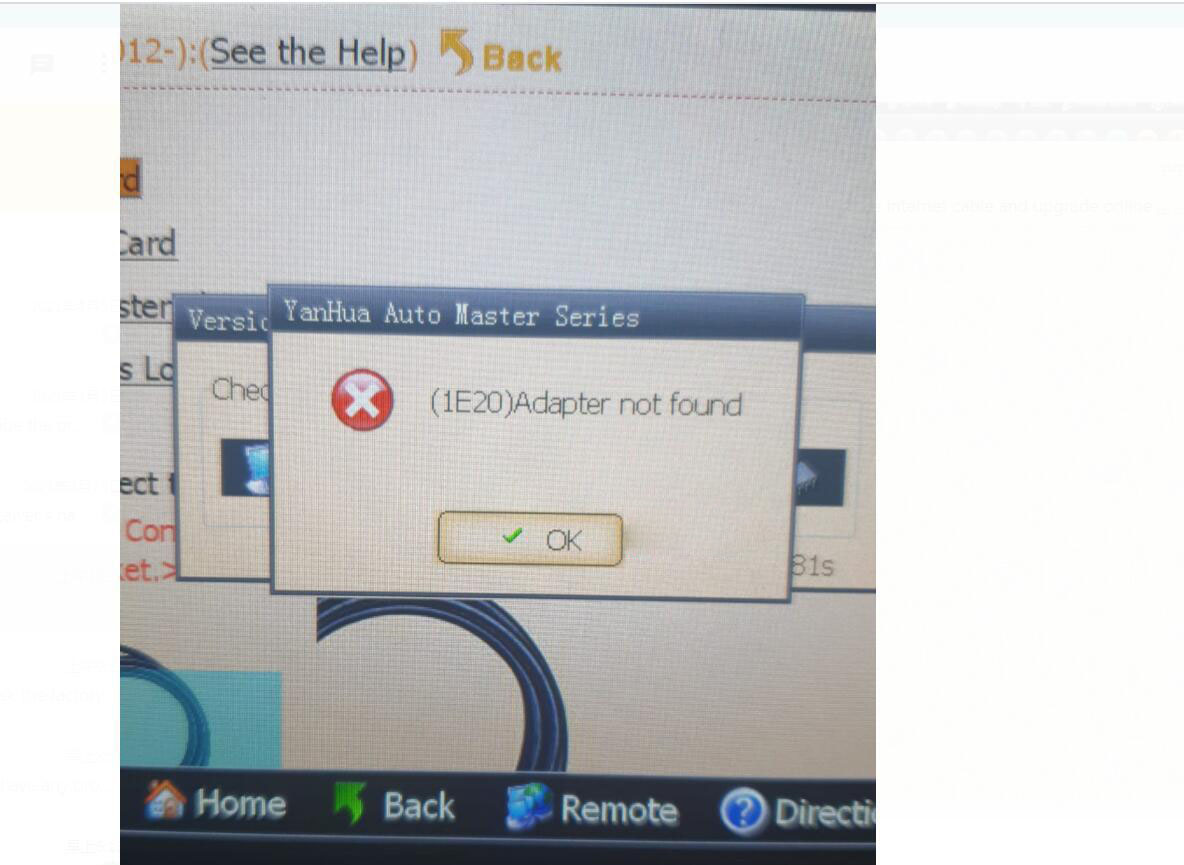

Digimaster3 error “(7F12) the subfunction is not supported” “(1E20) adapter not found” Solution



During Cluster Calibration for 2015 Range Rover using Digimaster3, There are two errors: “(7F12) the subfunction is not supported”and “(1E20) adapter not found” , Here are the solutions for both errors.

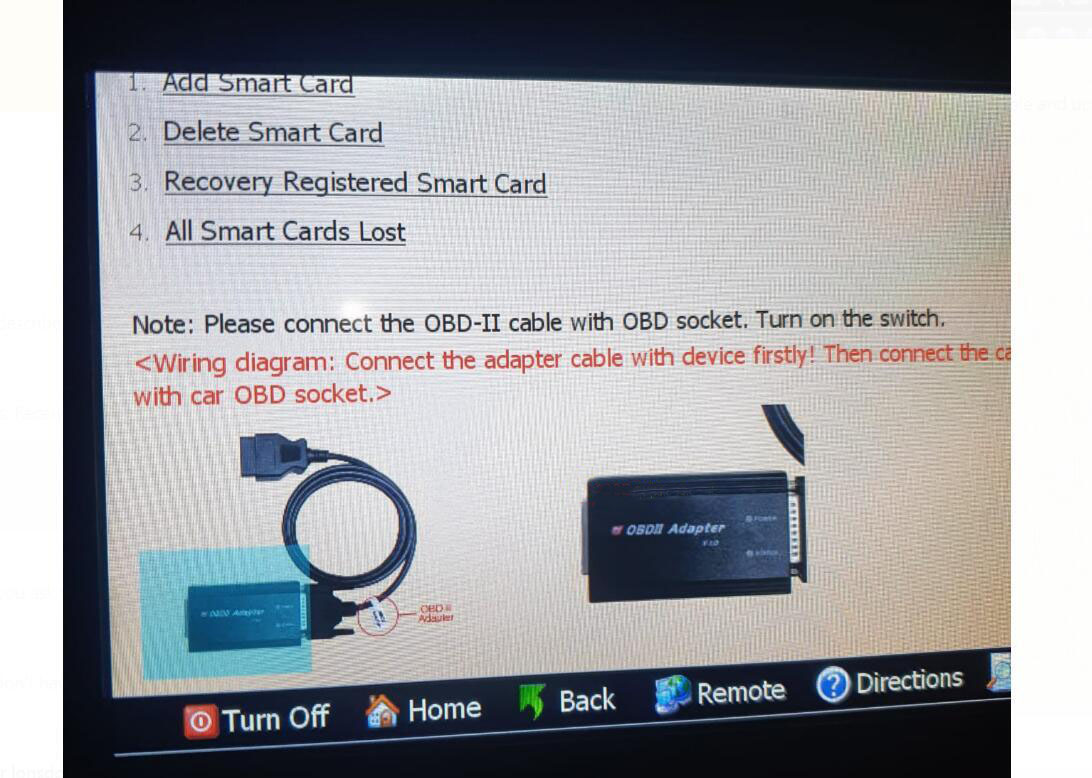

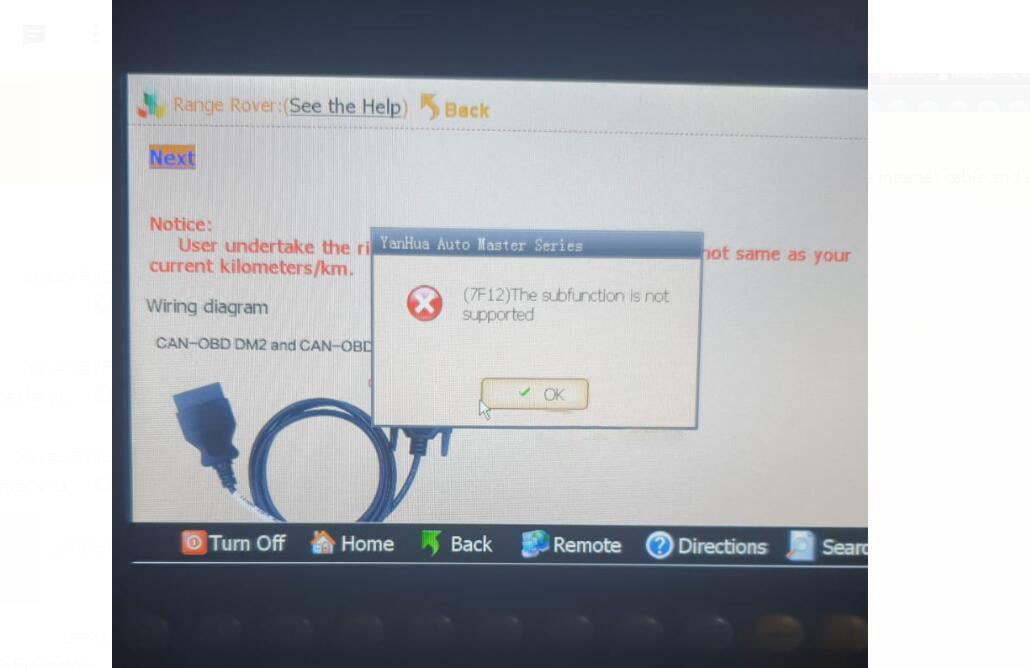

1.“(7F12) the subfunction is not supported”Error

Solution:

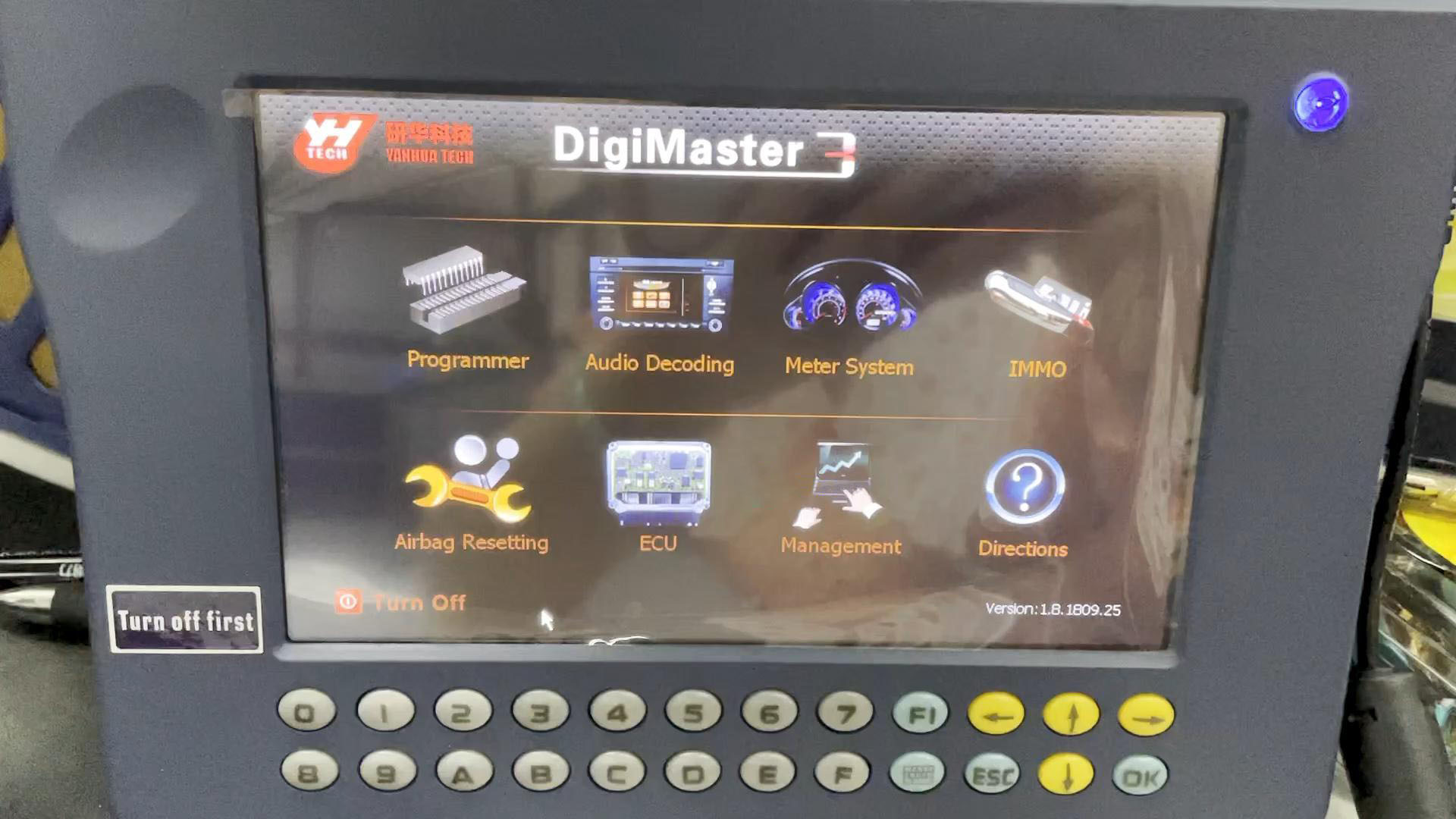

This is how I operate Digimaster 3:

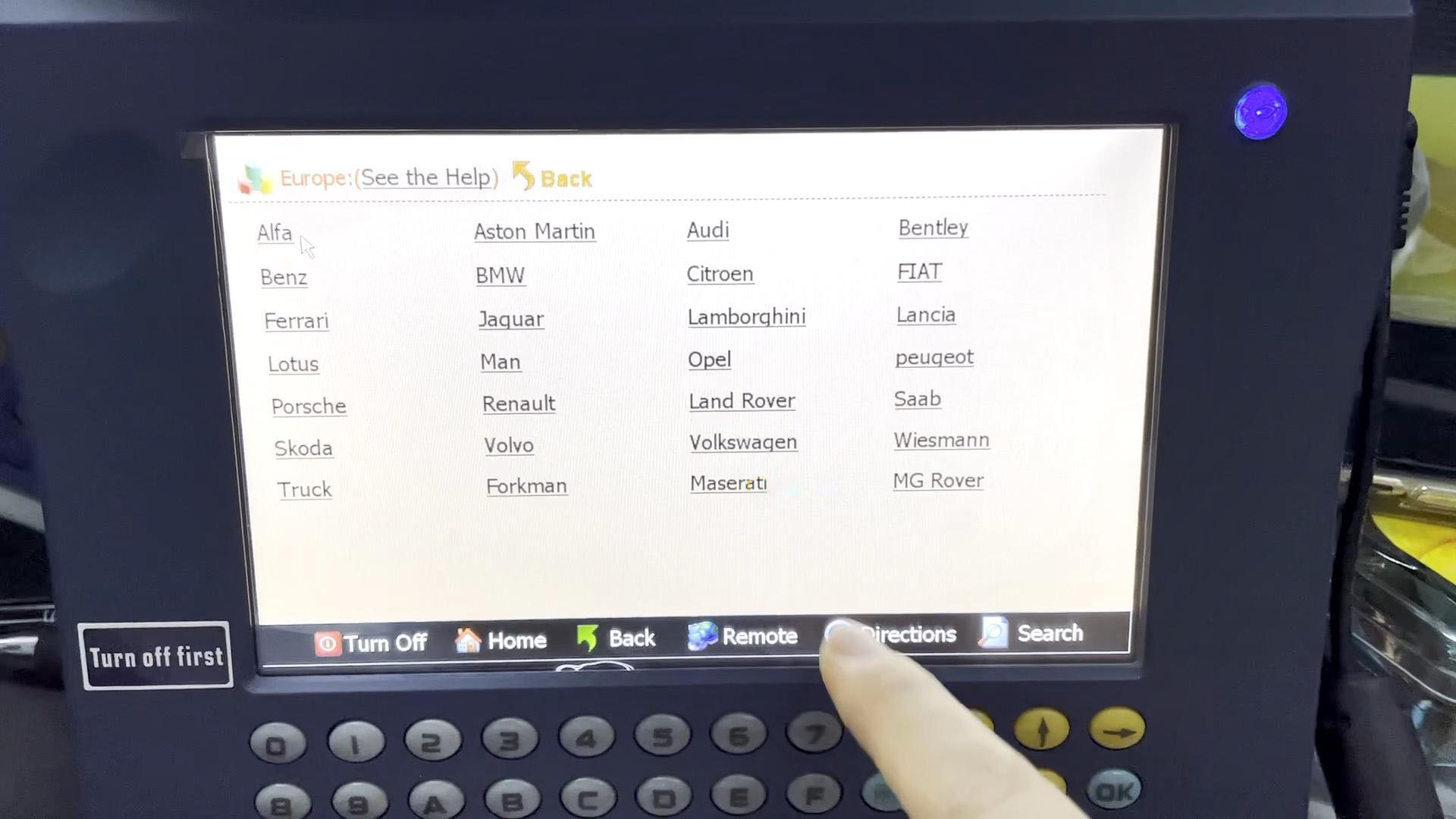

Tap Meter System -> Europe -> Land Rover -> Diagnostic socket adjustment -> Range Rover ->

2. “(1E20) adapter not found”Error

Solution:

Digimaster 3 do mileage correction for Change Hyundai Santa FE 2018



I’m currently working on a Hyundai Santa FE 2018 but Yanhua Digimaster 3 does not give connection instructions. Chip type MB91F067BS and another chip is HI26. Possible to correct odometer with D3? May I know where should I solder?

Digimaster III is capable of changing mileage on this model. But it doesn’t have wiring diagram. Need to find yourself wiring connections.
Then follow this path to correct mileage.
Programmer- CPU Program- MB91Fxx

Save data, send data, original mileage and mileage you desired directly to Yanhua technician.
They will modify data for you.

Any question you have please contact us:
https://www.obd2tool.com/goods-1750-Digimaster+3+Digimaster+III+Original+Odometer+Correction+Master+Update+Online.html

Yanhua Digimaster3 error message Solution

Question: tried to use Yanhua Digimaster3 to correct odometer via OBD for Mercedes Benz W211, get error message “This function is for testing by conner only, the formal issuance will be advised later.”

Look at how I operate and then get the above error message:

Connect Digimaster3 to the car using the CAN-OBD DM1NW Audi OBDII cable.

Tap “Meter System” -> Europe -> Benz -> Diagnostic socket adjustment -> E class -> W211 -> Next -> error ” “This function is for testing by conner only, the formal issuance will be advised later.”

Yanhua engineer replied:

You cannot use Yanhua Digimaster3 to correct odometer for W211 via OBD, please dismantle EIS and dashboard firstly.

Look at how Yanhua Digimaster3 correct odometer for Mercedes Benz?

Some can be done via OBD, some need to remove to read memory, some requires to solder contacts.

ICP, OBP, 9-PIN or 38-PIN adapter are required on specific models.

Car Model	Method	Adapter	Storage Location
CLS Class W219 -2011	Diagnostic	CAN-OBD DM1	Cluster
E class W212 -2011 V1	Diagnostic	CAN-OBD DM1	Cluster
E class W212 -2011 V2	Diagnostic	CAN-OBD DM1	Cluster
GL Class X164 v1	Diagnostic	CAN-OBD DM1	Cluster
GL Class X164 v2	Diagnostic	CAN-OBD DM1	Cluster
ML Class W164 V1	Diagnostic	CAN-OBD DM1	Cluster
ML Class W164 V2	Diagnostic	CAN-OBD DM1	Cluster
R Class W251 V1	Diagnostic	CAN-OBD DM1	Cluster
R Class W251 V2	Diagnostic	CAN-OBD DM1	Cluster
E-Coupe W207	Diagnostic	CAN-OBD DM1	Cluster
CLS Class W218 2011-	Diagnostic	CAN-OBD DM1	Cluster
SLS Class R197	Diagnostic	CAN-OBD DM1	Cluster
SLK Class R171	Diagnostic	CAN-OBD DM1	Cluster
SL Class R230	Diagnostic	CAN-OBD DM1	Cluster
CLK Class W209	Diagnostic	CAN-OBD DM1	Cluster
E Class W211	Diagnostic	CAN-OBD DM1	Cluster
S Class W211 W216	Diagnostic	CAN-OBD DM1	Cluster
A Class V1- A160	Soldering Contacts	OBP	Cluster
A Class V2-2005 3L40K	Cluster: Memory Directly EIS: Memory Directly/ Soldering Contacts	OBP	Cluster
Ambulance  93C66	Memory Directly	OBP	Cluster
Bus Actross 24C02	Memory Directly	OBP	Cluster
Bus Actross 24C04	Memory Directly	OBP	Cluster
Bus Mann 24C04	Memory Directly	OBP	Cluster
C Class –1995.9 93CS56(14Pins)	Memory Directly	OBP	Cluster
C Class 1995.10-1996.6 C93C56(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
C Class 1996.7-1999 93C66(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 39Pins	Cluster
C Class 2000-2005 W203 -2001.7	Soldering Contacts	ICP	EIS
C Class 2000-2005 W203 2001.8-2002.7	Soldering Contacts	(W203/W220)	EIS
C Class 2000-2005 W203 2002-2004.7- MCU: hc08	Soldering Contacts	(W203/W220)	EIS
C Class 2000-2005 W203 2002-2004.7- MCU: hc12	Memory Directly/ Soldering Contacts	9S12/W211/ (E65/E66)/ CAN&BDM	EIS
C Class 2000-2005 W203 2004-2005 (80pins CPU)	Memory Directly/ Soldering Contacts	9S12/ CAN&BDM	EIS
C Class 2000-2005 W203	Memory Directly/ Meter Socket	OBP/ (C/E CLASS)	Cluster
C Class 2006 W203	Cluster: Memory Directly EIS: Memory Directly/ Soldering Contacts	Cluster: OBP EIS: 9S12/ CAN&BDM	Cluster+EIS
C Class 2006- W204	Memory Directly	Cluster: OBP EIS: 9S12	Cluster+EIS
CGW V1	Soldering Contacts	ICP	Cluster
CGW V2	Soldering Contacts	ICP	Cluster
CL Class 1995.9 93CS56(14Pins)	Memory Directly /Meter Socket	OBP/BENZ 95S	Cluster
CL Class 1995.10-1996.6 93C56(8Pins)	Memory Directly /Diagnostic	OBP/ BENZ 38Pins	Cluster
z CL Class  1996.7-1999 93C66(8Pins)	Memory Directly /Diagnostic	OBP/ BENZ 38Pins	Cluster
CL Class 2000 24C04	Memory Directly	OBP	Cluster
CL Class 2001- W215 -2001.7	Soldering Contacts	ICP	EIS
CL Class 2001- W215 2001.8-2002.7	Soldering Contacts	(W203/W220)	EIS
CL Class 2001- W215 2002-2004	Soldering Contacts	(W203/W220)	EIS
CL Class 2001- W215 2004-2005 (80pins CPU)	Memory Directly/ Soldering Contacts	9S12/ CAN&BDM	EIS
CL Class 2001- W215 Meter adjustment	Memory Directly	OBP	Cluster
CLK Class–1998.4 93C56(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
CLK Class–1998.4 93C66(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
CLK Class 1999.7-2000 93C86	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
CLK Class 2001- W209 2002 EIS MC908 V1	Soldering Contacts	ICP	EIS
CLK Class 2001- W209 2002 EIS MC908 V2	Soldering Contacts	ICP	EIS
CLK Class 2001- W209 2002 EIS MC908 V3	Soldering Contacts	ICP	EIS
CLK Class 2001- W209 2002-2004 EIS(MC912)	Memory Directly/ Soldering Contacts	9S12/W211/ (E65/E66)/ CAN&BDM	EIS
CLK Class 2001- W209 2004-2005 EIS(MC9S12)	Memory Directly/ Soldering Contacts	9S12/ CAN&BDM	EIS
CLK Class 2001- W209 Meter adjustment	Memory Directly	OBP	Cluster
CLK Class 2006 W219 2002 EIS MC908 V1	Soldering Contacts	ICP	EIS
CLK Class 2006 W219 2002 EIS MC908 V2	Soldering Contacts	ICP	EIS
CLK Class  2006 W219 2002 EIS MC908 V3	Soldering Contacts	ICP	EIS
CLK Class 2006 W219 2002-2004 EIS(MC912)	Memory Directly/ Soldering Contacts	9S12/W211/ (E65/E66)/ CAN&BDM	EIS
CLK Class  2006 W219 2004-2005 EIS(MC9S12	Memory Directly/ Soldering Contacts	9S12/ CAN&BDM	EIS
CLK Class  2006 W219 Meter adjustment	Memory Directly	OBP	Cluster
E Class -1998.4 93C56(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
E Class -1998.4 93C66(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
E Class 1999.7-2000 93C86	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
E Class 2001- W211 2002-2004 EIS (112pins CPU)	Memory Directly/ Soldering Contacts	9S12/W211/ (E65/E66)/ CAN&BDM	EIS
E Class 2001- W211 2004-2005 EIS (80pins CPU)	Memory Directly/ Soldering Contacts	9S12/ CAN&BDM	EIS
E Class 2001- W211 24C16	Memory Directly	OBP	Cluster
E Class 2001- W211 24C32	Memory Directly	OBP	Cluster
E Class 2001- W211 Meter socket	Meter Socket	C/E CLASS	Cluster
E Class 2009- W212	Memory Directly	OBP	Cluster
G Class -1998.4 93C66(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
G Class 1998.5-1999 93C86	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
G Class 2000- MCU(new) 2002 EIS MC908 V1	Soldering Contacts	ICP	EIS
G Class 2000- MCU(new) 2002 EIS MC908 V2	Soldering Contacts	ICP	EIS
G Class 2000- MCU(new) 2002 EIS MC908 V3	Soldering Contacts	ICP	EIS
G Class 2000- MCU(new) 2002-2004 EIS(MC912)	Memory Directly/ Soldering Contacts	9S12/W211/ (E65/E66)/ CAN&BDM	EIS
G Class 2000- MCU(new) 2004-2005 EIS(MC9S12)	Memory Directly/ Soldering Contacts	9S12/ CAN&BDM	EIS
G Class  2000- MCU(new) Meter adjustment	Memory Directly	OBP	Cluster
M Class 2006 W164	Memory Directly	OBP	Cluster
ML Class 2000 93C66	Memory Directly/ Soldering Contacts	OBP/BENZ-OBD	Cluster
ML Class 2005 ML350	Cluster: Memory Directly EIS: Memory Directly/ Soldering Contacts	Cluster: OBP EIS: 9S12/ CAN&BDM	Cluster+EIS
R Class 2006 R350	Cluster: Memory Directly EIS: Memory Directly/ Soldering Contacts	Cluster: OBP EIS: 9S12/ CAN&BDM	Cluster+EIS
S Class -1995.9 93CS56(14Pins)	Memory Directly / Meter Socket	OBP/BENZ 95S	Cluster
S Class 1995.10-1996.6 93C56(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
S Class 1996.7-1998 93C66(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
S Class 1999 B58	Memory Directly	OBP	Cluster
S Class 2000 24C04	Memory Directly	OBP	Cluster
S Class 2001- W220 -2001.7	Soldering Contacts	ICP	EIS
S Class 2001- W220 2001.8-2002.7	Soldering Contacts	(W203/W220)	EIS
S Class 2001- W220 2002-2004	Soldering Contacts	(W203/W220)	EIS
S Class 2001- W220 2004-2005 (80pins CPU	Memory Directly/ Soldering Contacts	9S12/ CAN&BDM	EIS
S Class 2001- W220 Meter adjustment	Memory Directly	OBP	Cluster
S Class 2006 W221	Memory Directly	OBP	Cluster
SL Class 1995.9 93CS56(14Pins)	Memory Directly/ Meter Socket	OBP/BENZ 95S	Cluster
SL Class 1995.10-1996.6 93C56(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
SL Class 1996.7-1998 93C66(8Pins)	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
SL Class 2000- R230 -2001.7	Soldering Contacts	ICP	EIS
SL Class 2000- R230 2001.8-2002.7	Soldering Contacts	(W203/W220)	EIS
SL Class 2000- R230 2002-2004	Soldering Contacts	(W203/W220)	EIS
SL Class  2000- R230 2005	Memory Directly/ Soldering Contacts	9S12/ CAN&BDM	EIS
SL Class 2000- R230 Meter adjustment	Memory Directly	OBP	Cluster
SLK Class -1998.4 R170	Memory Directly/ Diagnostic	OBP/ BENZ 38Pins	Cluster
SL Class 1998.5-1999 R170	Memory Directly/ Diagnostic	OBP/BENZ-OBD	Cluster
SLK Class 2000- R171 2004-2005 EIS (80pins CPU)	Memory Directly/ Soldering Contacts	EIS: 9S12/ CAN&BDM	EIS
SLK Class 2000- R171 Meter Adjustment	Memory Directly	OBP	Cluster
Smart -2004	Cluster: Memory Directly BCU: Soldering Contacts	Cluster: OBP BCU: ICP	Cluster+BCU
Smart 2004-	Cluster: Memory Directly BCU: Soldering Contacts	Cluster: OBP BCU: ICP	Cluster+BCU
Sprinter 2000 Fahrt	Memory Directly	OBP	Cluster
Sprinter 2000 Tacho	Memory Directly	OBP	Cluster
Sprinter 24C02	Memory Directly	OBP	Cluster
Sprinter 93C46 V1	Memory Directly	OBP	Cluster
Sprinter 93C46 V2	Memory Directly	OBP	Cluster
Sprinter 93C46 V3	Memory Directly	OBP	Cluster
Sprinter Magneti-Marelli V1	Soldering Contacts	ICP	Cluster
Sprinter Magneti-Marelli V2	Soldering Contacts	ICP	Cluster
V Class 2005 V2	Memory Directly EIS: Soldering Contacts	Cluster: OBP EIS: ICP	Cluster+EIS
V Class Magneti-Marelli V1	Soldering Contacts	ICP	Cluster
V Class  Magneti-Marelli V2	Soldering Contacts	ICP	Cluster
Vaneo	Soldering Contacts	ICP	Cluster
Viano vito	Cluster: Memory Directly EIS: Soldering Contacts	Cluster: OBP EIS: ICP	Cluster+EIS
